DISPENSING SYSTEMS - CARBONATERS AND COOLERS

ITS HIGH TIME FOR MORE EFFICIANY AND LESS CONSUMPTION

CARBONATORS AND BEER COOLERS.

Carbonators

Due to constant impregnation carbonators guarantee the best quality of soda.

Drinks- and beer coolers

The new generation of coolers achieves the highest energy efficiency. The high-grade isolation prevents energy loss and thus lowers the energy consumption. Furthermore, this enhances the service life of the coolers. The drink- and beer coolers guarantee premium drink quality while being service friendly.

Beer coolers are available with an additional closed-circuit cooling system. In addition to the refrigeration of drinks, other cooling units (cooling agent water-glycol) can be provided with energy.


Best soda water quality through constant impregnation

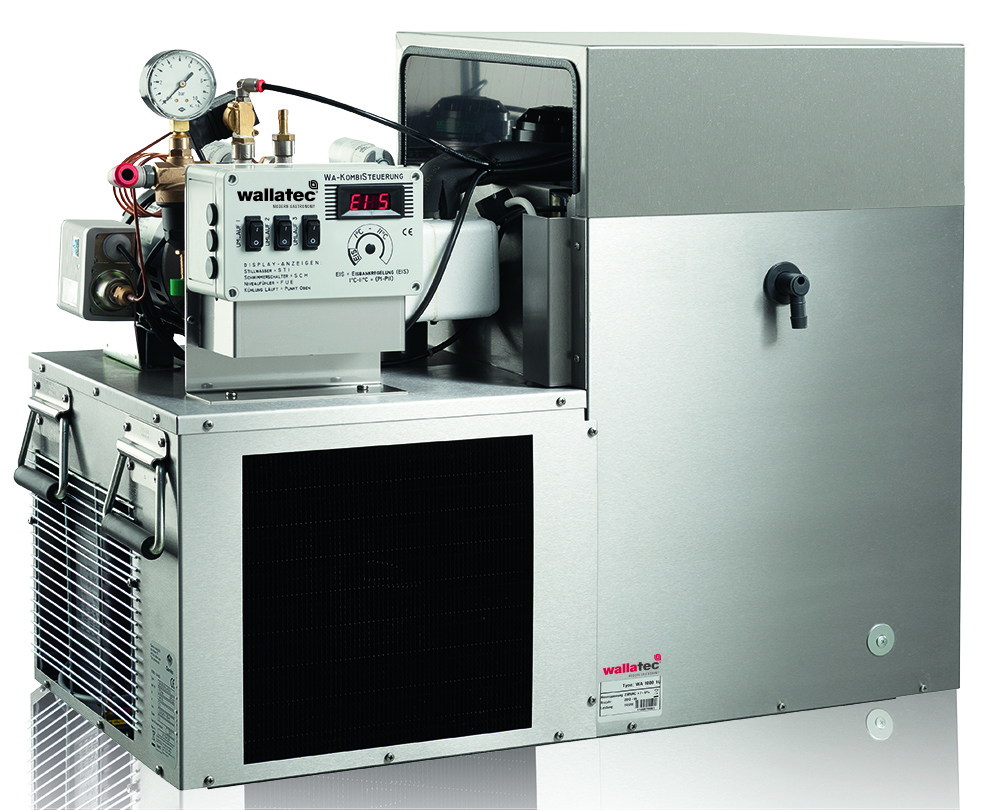

WA 500 product photos

Benefits:

  • Best soda water quality through constant impregnation
  • Different sizes
  • Different output capacities
  • Additional cooling



Features:

  • Available in different sizes and with different capacities
  • Available with 1,2 or 3 circuits
  • Air-cooled, water-cooled or with external cooling
  • Thermostatically controlled water bath
  • Additional cooling and soda water production
  • Digital remote indicator for the water bath and the soda temperature
  • Top performance with 0,3l drinks and a starting temperature of 5°C
    • WA 500: 450 drinks in 150 minutes
    • WA 1000: 720 drinks in 150 minutes
    • WA 1500: 1250 drinks in 150 minutes
  • Up to 8 additional refrigerating coils
  • One station can be supplied by a central storage unit



The wallatec carbonator is available in 3 varieties:

WA 500
WA 1000 (1/2 ps)
WA 1500 (3/4 ps)

Best soda water quality through constant impregnation

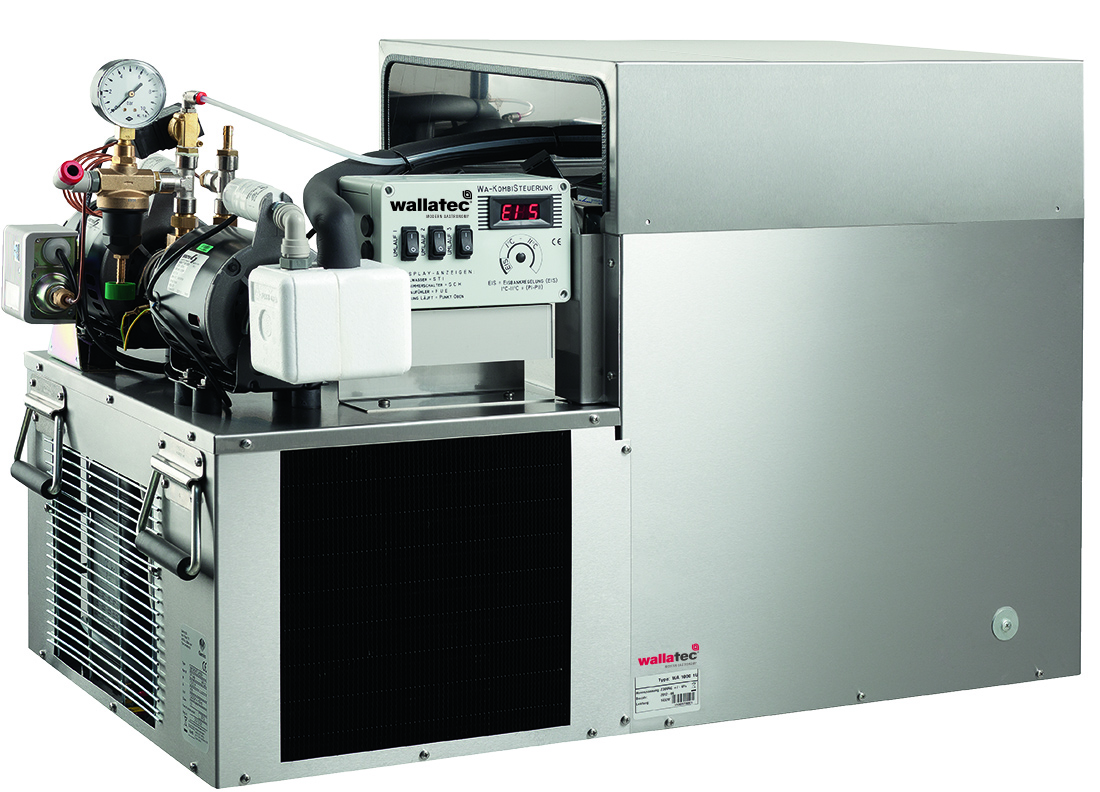

WA 1000 product photos

Benefits:

  • Best soda water quality through constant impregnation
  • Different sizes
  • Different output capacities
  • Additional cooling



Features:

  • Available in different sizes and with different capacities
  • Available with 1,2 or 3 circuits
  • Air-cooled, water-cooled or with external cooling
  • Thermostatically controlled water bath
  • Additional cooling and soda water production
  • Digital remote indicator for the water bath and the soda temperature
  • Top performance with 0,3l drinks and a starting temperature of 5°C
    • WA 500: 450 drinks in 150 minutes
    • WA 1000: 720 drinks in 150 minutes
    • WA 1500: 1250 drinks in 150 minutes
  • Up to 8 additional refrigerating coils
  • One station can be supplied by a central storage unit



The wallatec carbonator is available in 3 varieties:

WA 500
WA 1000 (1/2 ps)
WA 1500 (3/4 ps)

Best soda water quality through constant impregnation

WA 1500 product photos

Benefits:

  • Best soda water quality through constant impregnation
  • Different sizes
  • Different output capacities
  • Additional cooling



Features:

  • Available in different sizes and with different capacities
  • Available with 1,2 or 3 circuits
  • Air-cooled, water-cooled or with external cooling
  • Thermostatically controlled water bath
  • Additional cooling and soda water production
  • Digital remote indicator for the water bath and the soda temperature
  • Top performance with 0,3l drinks and a starting temperature of 5°C
    • WA 500: 450 drinks in 150 minutes
    • WA 1000: 720 drinks in 150 minutes
    • WA 1500: 1250 drinks in 150 minutes
  • Up to 8 additional refrigerating coils
  • One station can be supplied by a central storage unit



The wallatec carbonator is available in 3 varieties:

WA 500
WA 1000 (1/2 ps)
WA 1500 (3/4 ps)

COMBINATION CONTROL

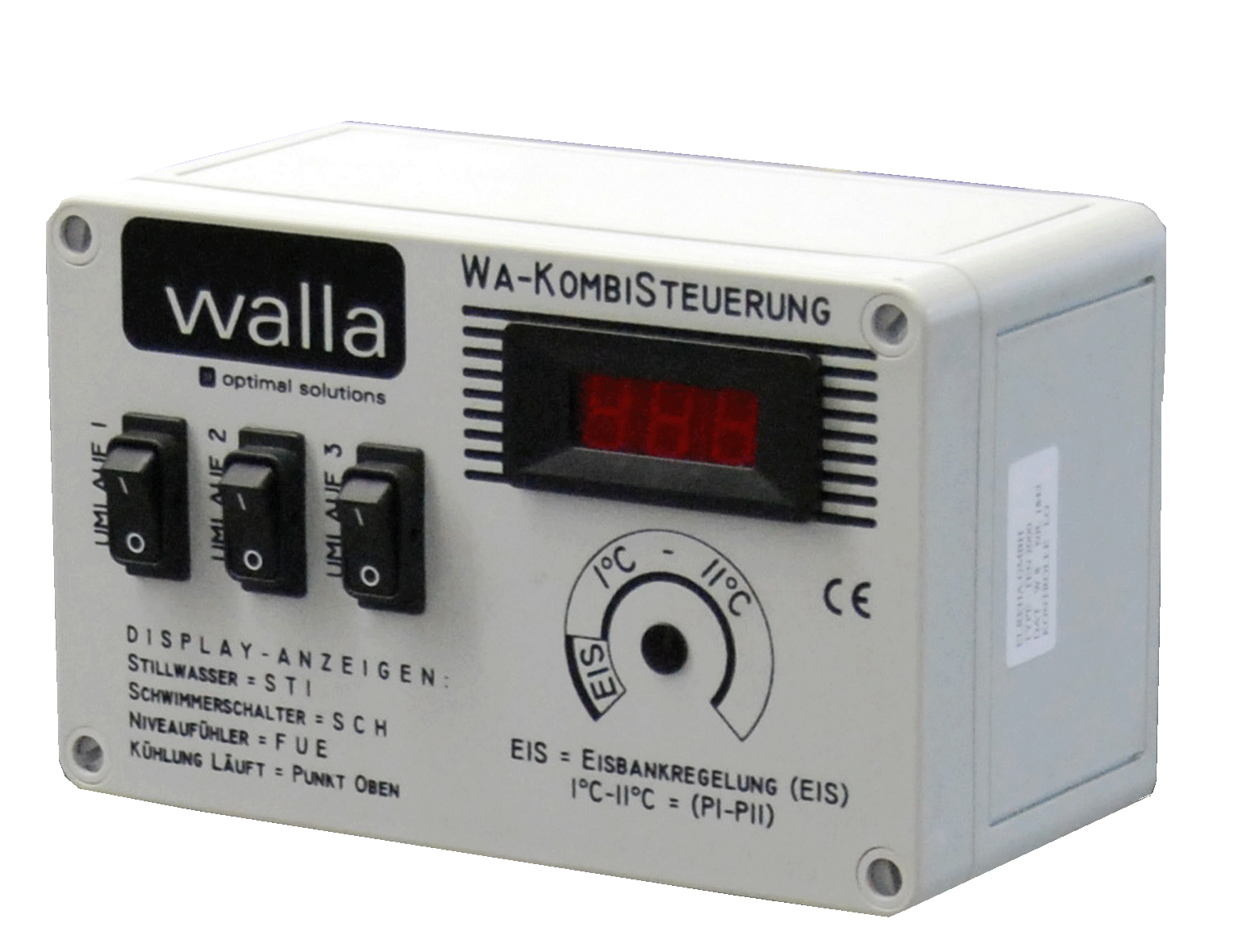

COMBINATION CONTROL product photos

The combination control undertakes the following tasks:

  • Temperature regulation via Potentiometer 1 - 11°C (settings are visible on the display...P1 - P11, displays the target temperature and the actual temperature) OR
  • Ice bank regulator with min. sensor (displays ice when the ice bank is active) OR
  • Combined: Temperature- and Ice bank regulator
  • Compressor protection through activation- and run time surveillance in case of a black-out 3 min
  • Level regulation with 3-point sensor or float gauge McCanns. This variation connect through an electrical component (Triac) and and prevents further relay attrition
  • Still water function, 6 piece standard issue, each with a 24V inlet
  • Additional relays: still water and soda water can be dispensed at the same time (only with the WA 500)
  • Dry-run protection of all functions Optional connection of water cooling or air cooling (or a combination)
  • Agitator motor can be connected without an additional adapter



Measurements (BxHxD): 980 x 620 x 550mm
Connection: 230V
