Dispensing systems
Dispensing systems are the heart of every business in the food industry. This is why the new generation of dispensing systems presents itself as groundbreaking in terms of performance and design.
How do dispensing systems work?
With the aid of dispensing systems, drinks from storage tanks are dipped into drinking containers. The systems consist of the tap and connection fittings, the compressed gas storage and the applicable pressure reduction unit. Refrigeration right up to the tap guarantees fresh drinks.
Wallatec revolutionized the operating of dispensers with touch – technology. The latest technology and the possibility of gradual upgrading to a overall system provide a maximum in flexibility and security of investment. The operating of the dispensing systems with the touch-display is easy and safe, the simple push with a finger is enough and the drink is dispensed in the precise amount ordered. Our dispenser heads are available in various lengths and with a varying number of taps.
This dispensing system sets new standards in design and performance.
The new wallatec dispensing system impresses with its number of groundbreaking functions and its modern design. With its modular design and intelligent control units the system is extremely efficient and ensures a fast and fluent workflow.
Every chance to optimize the operating efficiency is utilized – lowering labor costs – faster drink dispensing – perfect service – optimal employee support – secure billing.
Benefits of the dispensing systems:
- All components of the system are linked via Ethernet.
- Any number of coffee machines, liquor dispensers, weighing systems and more are easily integrated.
- Fully automatic billing via display with customary printers or mail dispatch.
- After plugging in the staff key, all drinks booked at the register will automatically be displayed in the correct order and large print, so that the staff member just has to call them up. This pay, the pressing of single small buttons – with often times even smaller and nearly illegible labels – is no longer necessary.
- Fully automatic and employee-related saving or deleting of remaining quantities.
- Prior drawing possible and automatic charging of cash entries.
- Drawing possible after employee-login (staff key) without pushing a single button – nevertheless, the balance is displayed for information.
- No logjams and thus no waiting period – just put the key in to start drawing and the next waiter can login and draw other drinks immediately.
- All valves are selected electronically – and therefore energy-saving. Due to the electronic regulation power consumption is reduced by 70%, which does not just reduce costs, but also prevents a rise in temperature, which in turn lengthens the operational lifetime.

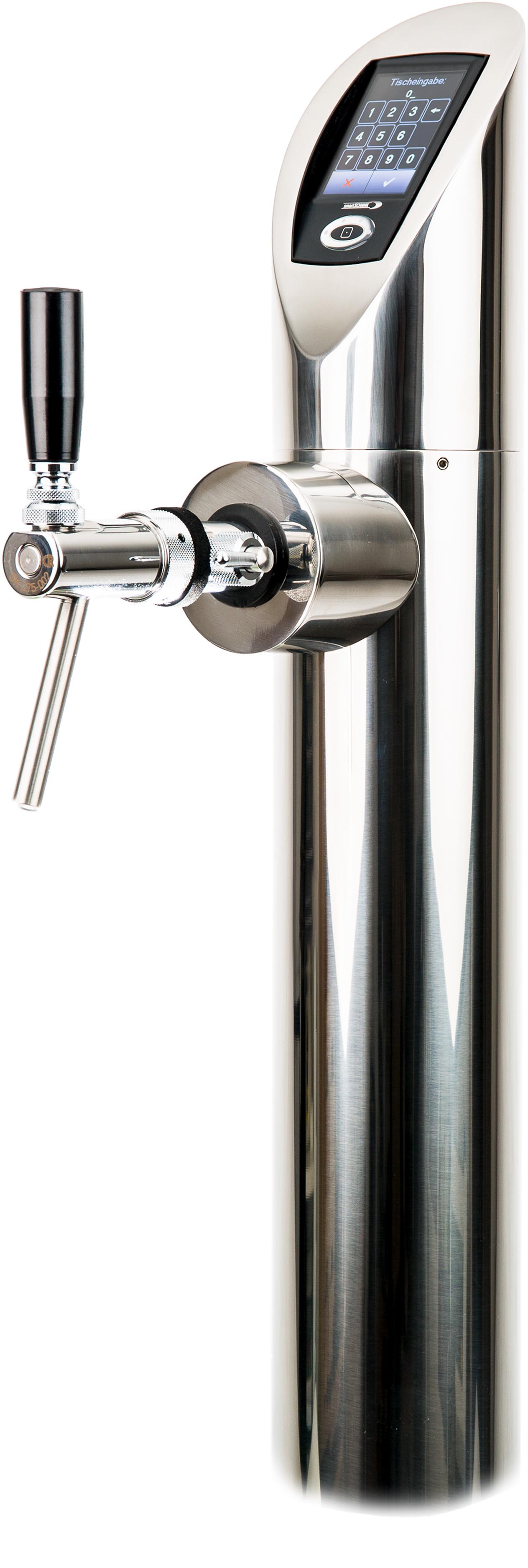

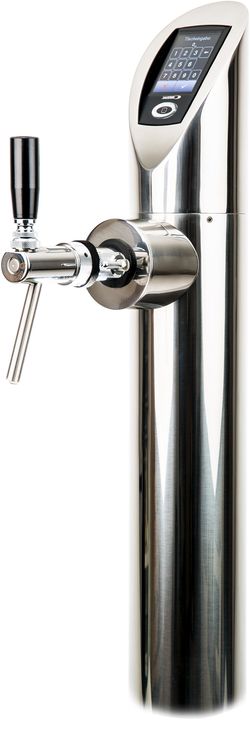

DISPENSER HEAD WSB1
This dispenser head sets new standards in design and performance.
The new wallatec dispenser heads excel in modern design and a multitude of possible applications. Colors and coatings can be individually customized. There is also plenty of space to advertise your products at your disposal. The heads are easily opened with one movement of the hand and thus allow simple servicing.
Benefits of the beer head WSB1:
- Stainless steel cover powder-coated
- Color touch-display
- EUROSTAR compensator tap stainless steel
- Cool-valve magnetic valve with built-in cooling system
- Prefixed tubing of the head

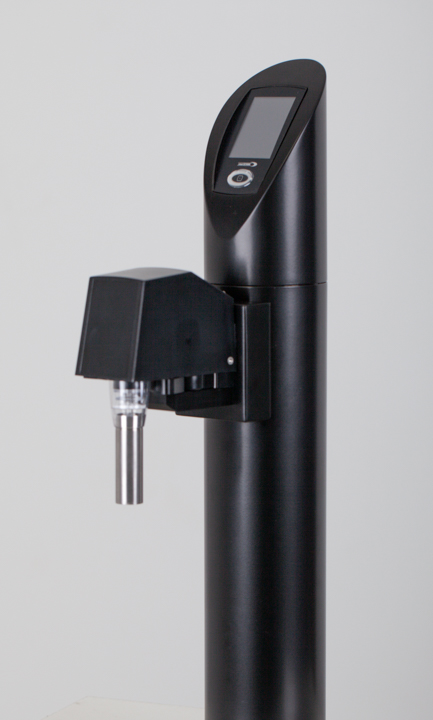

DISPENSER HEAD WSK1
This dispenser head sets new standards in design and performance.
The new wallatec dispenser heads excel in modern design and a multitude of possible applications. Colors and coatings can be individually customized. There is also plenty of space to advertise your products at your disposal. The heads are easily opened with one movement of the hand and thus allow simple servicing.
Benefits of the beer head WSK1:
- Stainless steel cover powder-coated
- Color touch-display
- Prepared for the installation of several taps (e.g. 1x Soda, 1x Wine, 1x Syrup, 1x Aperol)
- Cooling system

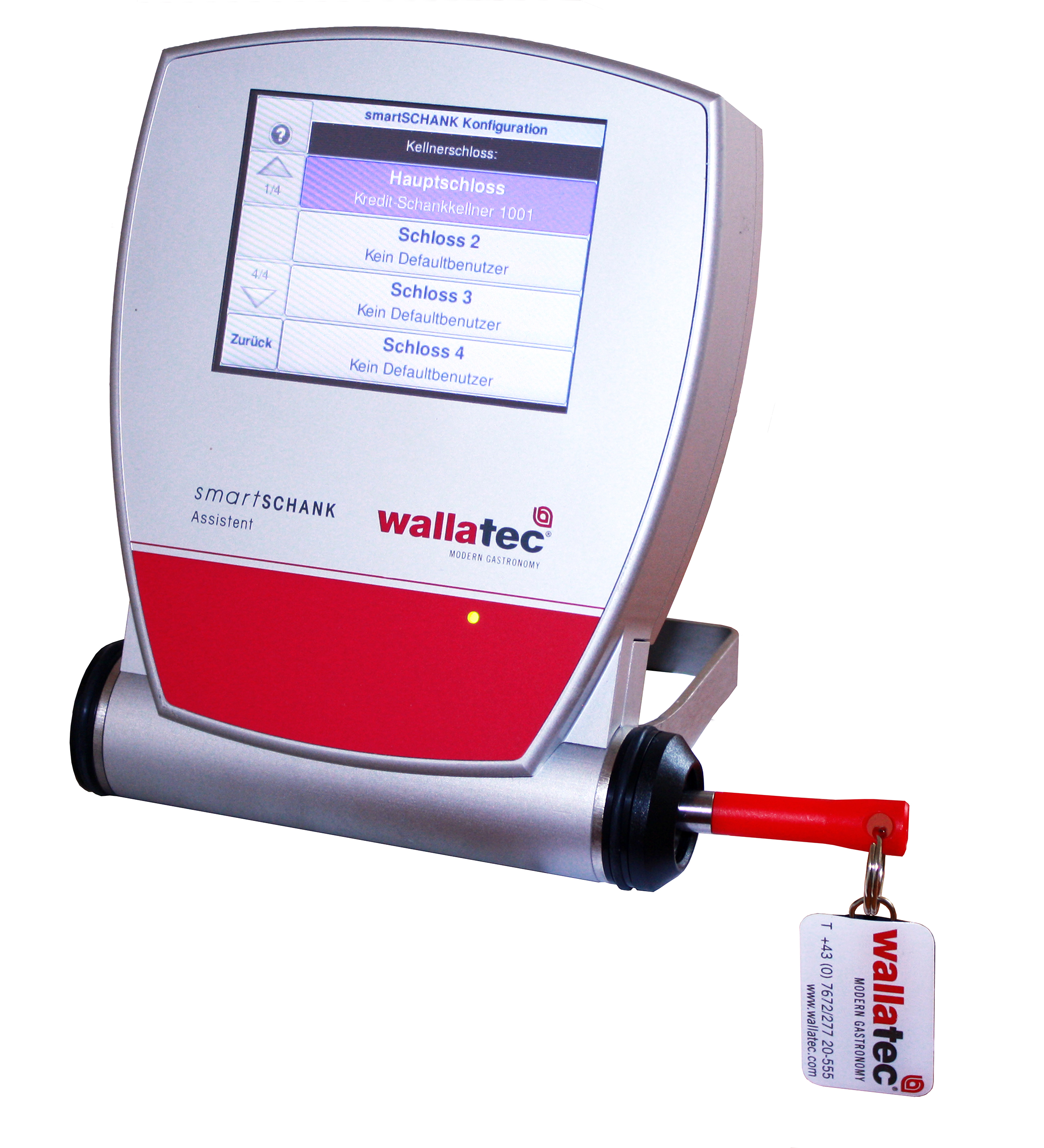

SMART-TAP ASSISTENT
Intelligent dispenser head for controlled dispensing
Benefits of the dispenser systems:
- Cooling right up to the tap – guaranteed freshness
- 100% control over dispensing amounts
- Easy operating via touch-display
- Entering dispenser start, table numbers etc. On the touch-display
- Graphic rendering of open credits on the touch-display
- Simple modification of drink allocations (without changing the keypad as with conventional devices)
- Billing at the dispenser (e.g. if there is no register)
- Error message (e.g. "out of beer"), also on the touch-display
- Notification of product-lock, if beverage containers or the conveyor gas have run out, prevents wrong accounting entries
- Automatic statistics
- Various frame sizes with 6 or 14 modules available
- Individual advertising space on the back and on the columns of the dispenser heads
Features:
- 64 programmable slots for external devices (coffee machines, turbines, etc.)
- Completely link-able
- Up to 64 valves, each one programmable as valve or release
- Individual equipping with product-specific valves
- Link-able to other devices (e.g. beer dispensers)
- Controlling of external devices
- Back-lit color touch-display for easy reading in any lighting conditions
- 60x45 color touch-display
- Up to 8 keys per level which can be individually reconfigured
- Reversible up to 4 levels
Wallatec dispensing systems are available in three varieties:
WTS 520: 485x525x465 (HxWxD), 6 modules
WTS 640: 485x665x465 (HxWxD), 8 modules
WTS 800: 485x805x465 (HxWxD), 10 modules

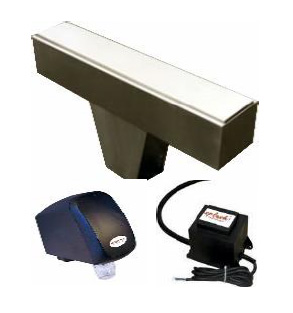

T-BEAM 6 TAPS
Consisting of:
- T-beam 6 taps
- Drip catcher 400x200 fitting
- Cooling carbonator WA 500
- Filtering station incl. water filter
- Main one-piece pressure regulator for CO2, 7bar
- Intermediate pressure regulator, 7 bar
- Plug-in connector socket NC beverage black
- Beverage pump Flojet pneumatic T5000
- Assorted assembling materials
T-BEAM 8 TAPS
Consisting of:
- T-beam 8 taps
- Drip catcher 400x200 fitting
- Cooling carbonator WA 500
- Filtering station incl. water filter
- Main one-piece pressure regulator for CO2, 7bar
- Intermediate pressure regulator, 7 bar
- Plug-in connector socket NC beverage black
- Beverage pump Flojet pneumatic T5000
- Assorted assembling materials

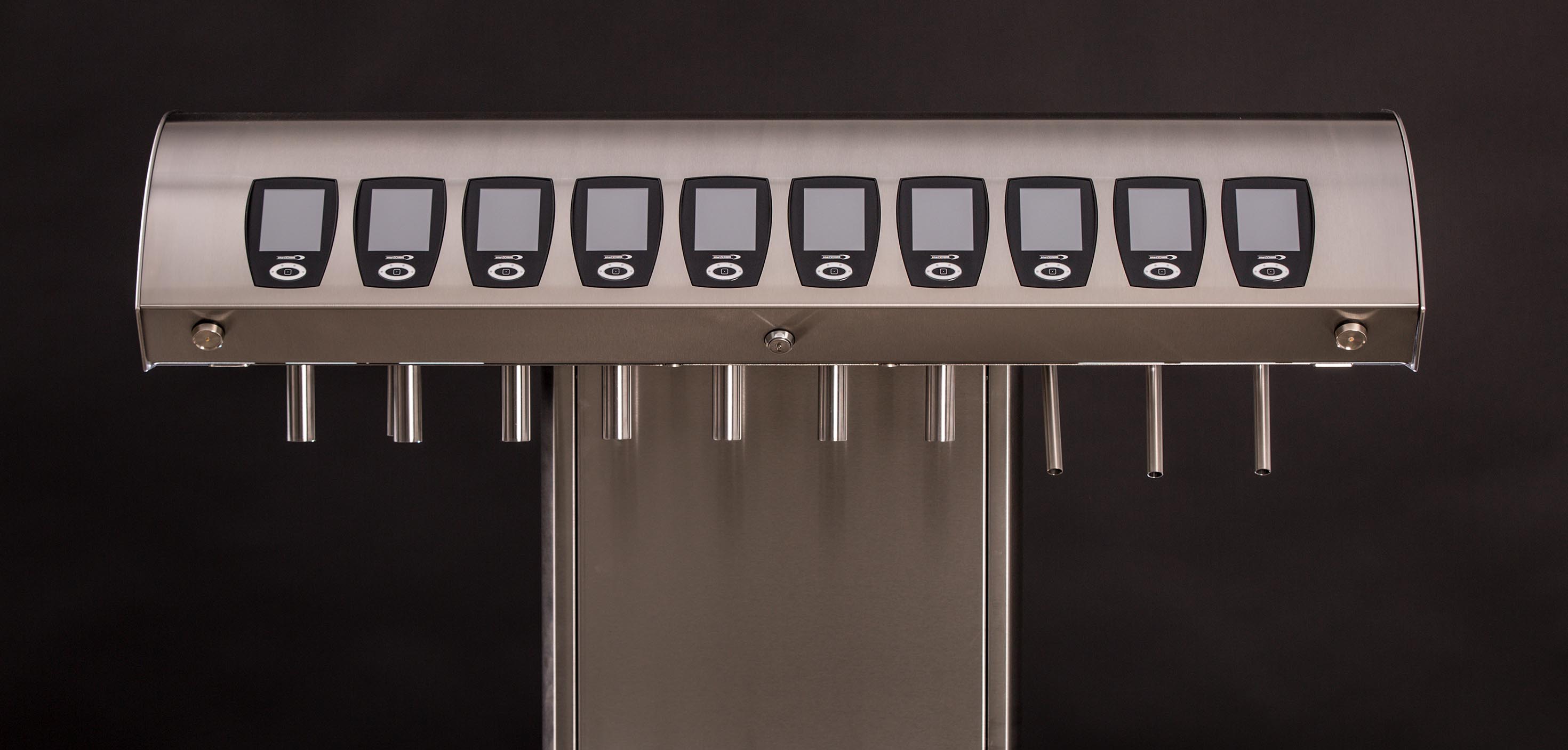

T-BEAM 10 TAPS
Consisting of:
- T-beam 10 taps
- Drip catcher 400x200 fitting
- Cooling carbonator WA 500
- Filtering station incl. water filter
- Main one-piece pressure regulator for CO2, 7bar
- Intermediate pressure regulator, 7 bar
- Plug-in connector socket NC beverage black
- Beverage pump Flojet pneumatic T5000
- Assorted assembling materials
